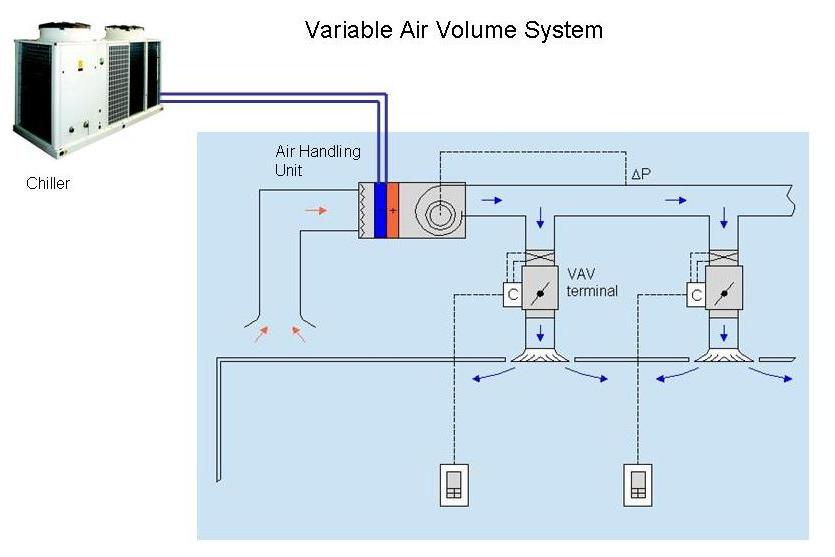

Variable Air Volume System

The performance of the VAV terminals and their controls is critical to the performance of the overall VAV system and Barcol-Air VAV terminals are known for their leadership in this area. Barcol-Air VAV terminals incorporate the following features:

• Airflow damper compensated for linear control operating with a Digital Actuator Controller  enabling the VAV terminal to be calibrated to deliver the exact maximum and minimum airflows required for the areas they serve and any airflow in between to satisfy the cooling demand from the room sensor or BMS system

• Pressure independent control using patented Flo-Cross airflow sensors which provide an accurate measurement of the airflow to the Digital Actuator Controller. This allows the VAV terminal to deliver the calibrated airflow independent of the upstream air pressure.

• Single or double skin construction. Double skin construction is used for low noise applications to minimize breakout noise.

• Optional electric or hot water heater to provide heating if requirement. • Optional multiple  connector air outlets.




Barcol-Air have a complete range of VAV terminals for all applications with built in pressure independent and factory calibrated digital controls.



-Round VAV Terminal

• Type:NA/NB…

• Single or double wall construction

• Size: Φ100,125,160,200,250,315,355,400



 -Rectangular VAV Terminal

• Type:NK/NL…

• Single or double wall construction

• Many available size, application at large volume

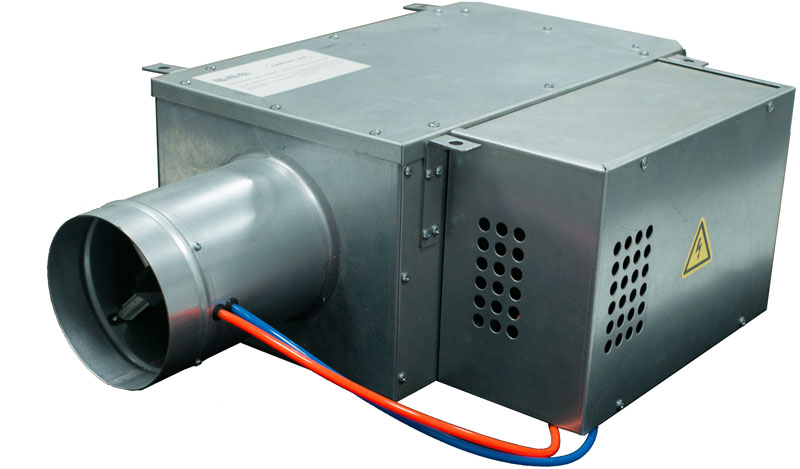

-Compact VAV Terminal
• Type:NC…
• Airflow round inlet and rectangular outlet with insulation layer
• Size: Φ100,125,160,200,250,315,355,400


- Optional Accessories

• Three, four or six air outlet connector

• Plenum insulation

• Air outlet connectors with manual air dampers

• Hot water or electric heaters
